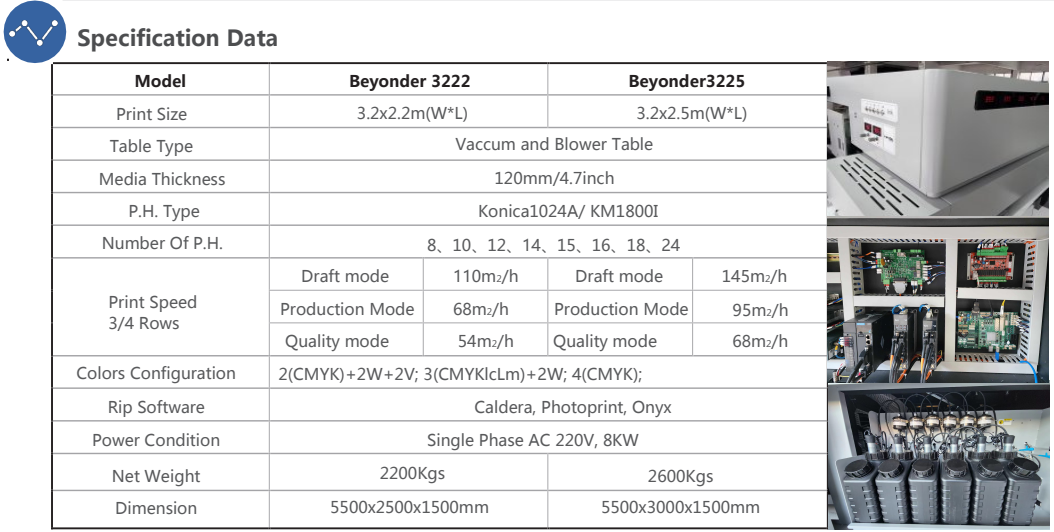

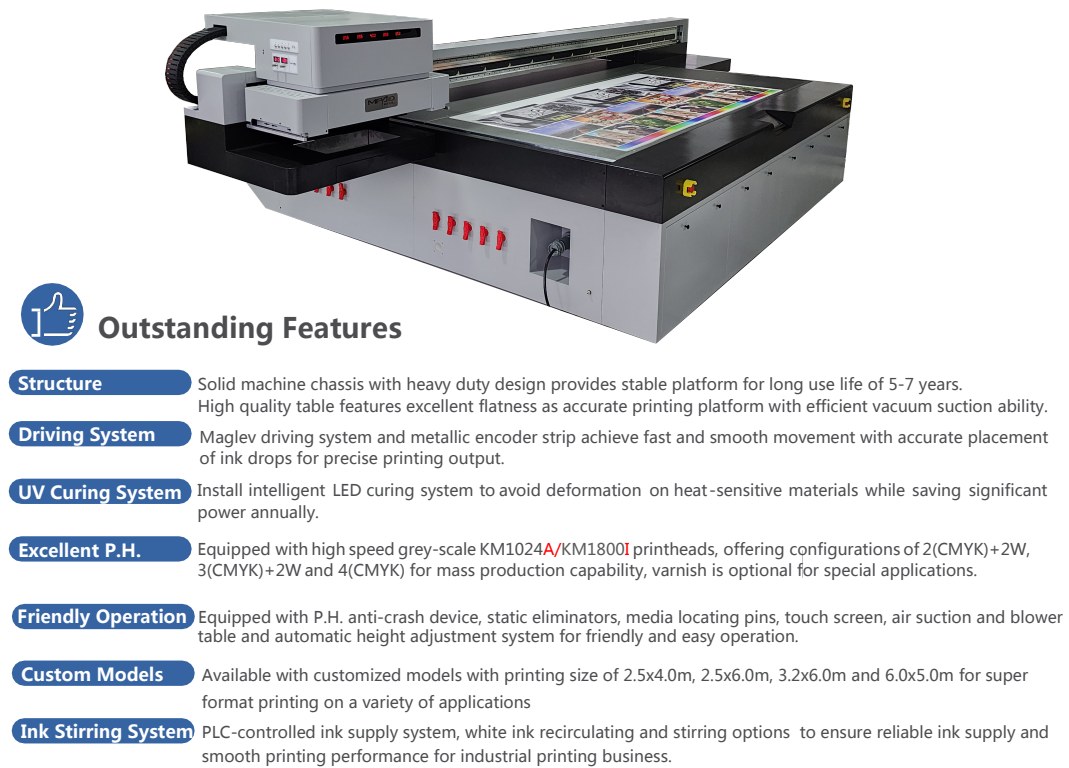

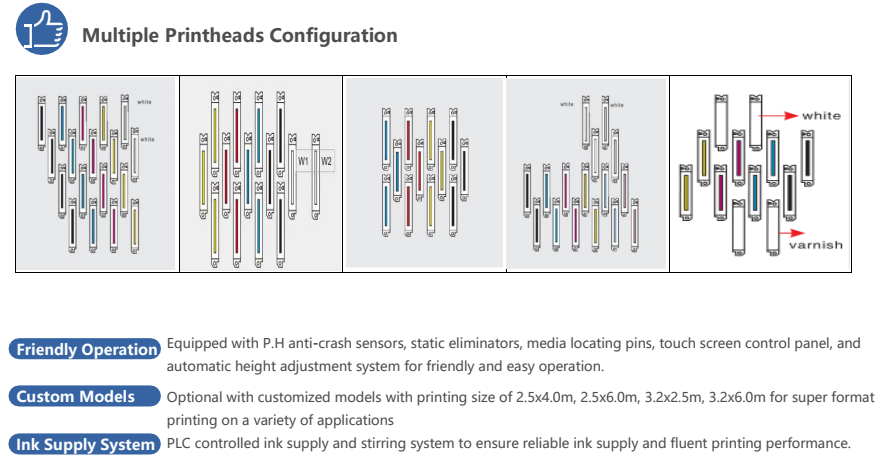

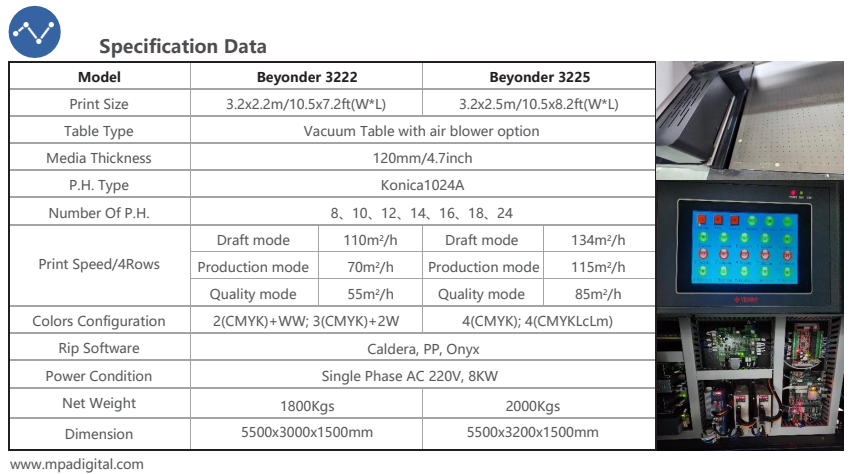

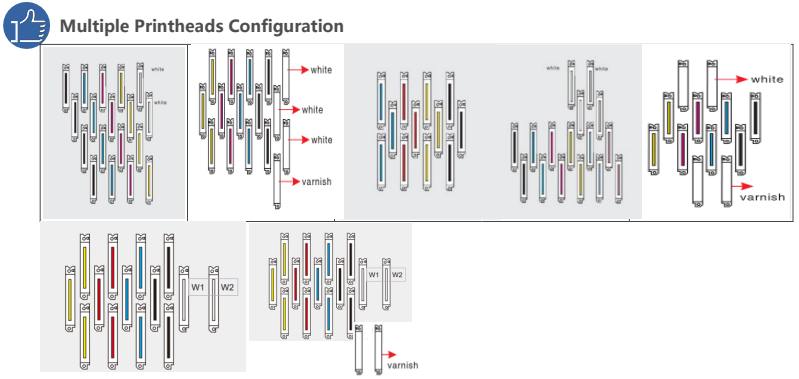

MPAD Beyonder series Flatbed 3222 and 3225 UV printers have printing sizes of 3.2x2.2m and 3.2x2.5m.  Both have multiple configurations of 14/18/20 printheads with high printing speed up to 120sqm/hour, including colors configuration of C M Y K Lc Lm, white and varnish for variable printing applications.

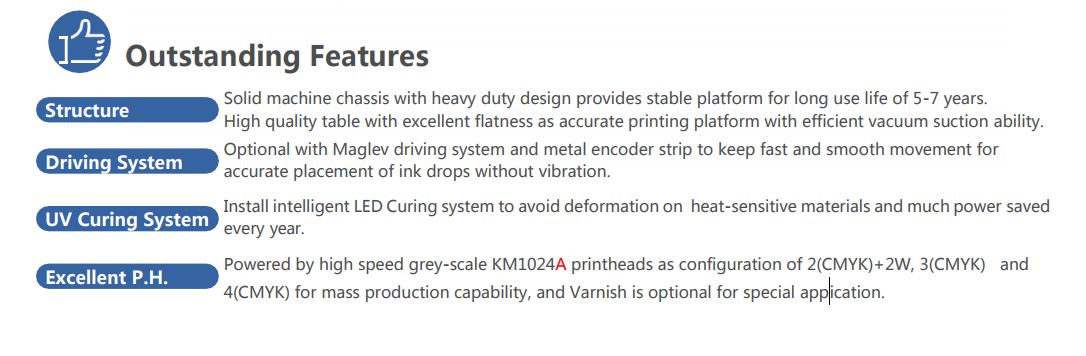

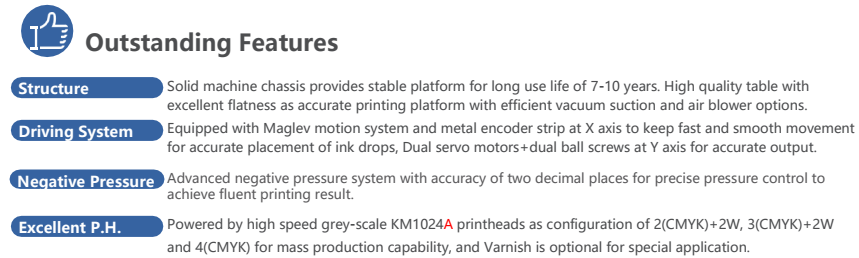

MPAD UV Printers adopt Maglev technology and metallic encoder at X axis for smooth movement and precise ink drops locating. Unique control technologies of steel belts and magnetic grids with close circle control at Y axis for fast and accurate movement.

Adtopt the independent development of PLC control ink supply and negative pressure system for stable output of UV printing.

Integration of control buttons, ink supply status and alarm information into Touch screen as friendly interface for easy control. Media set pins, vacuum suction, air blower and universal wheels table are effective to load heavy materials like acrylic sheets, wooden panels and glass easily.
